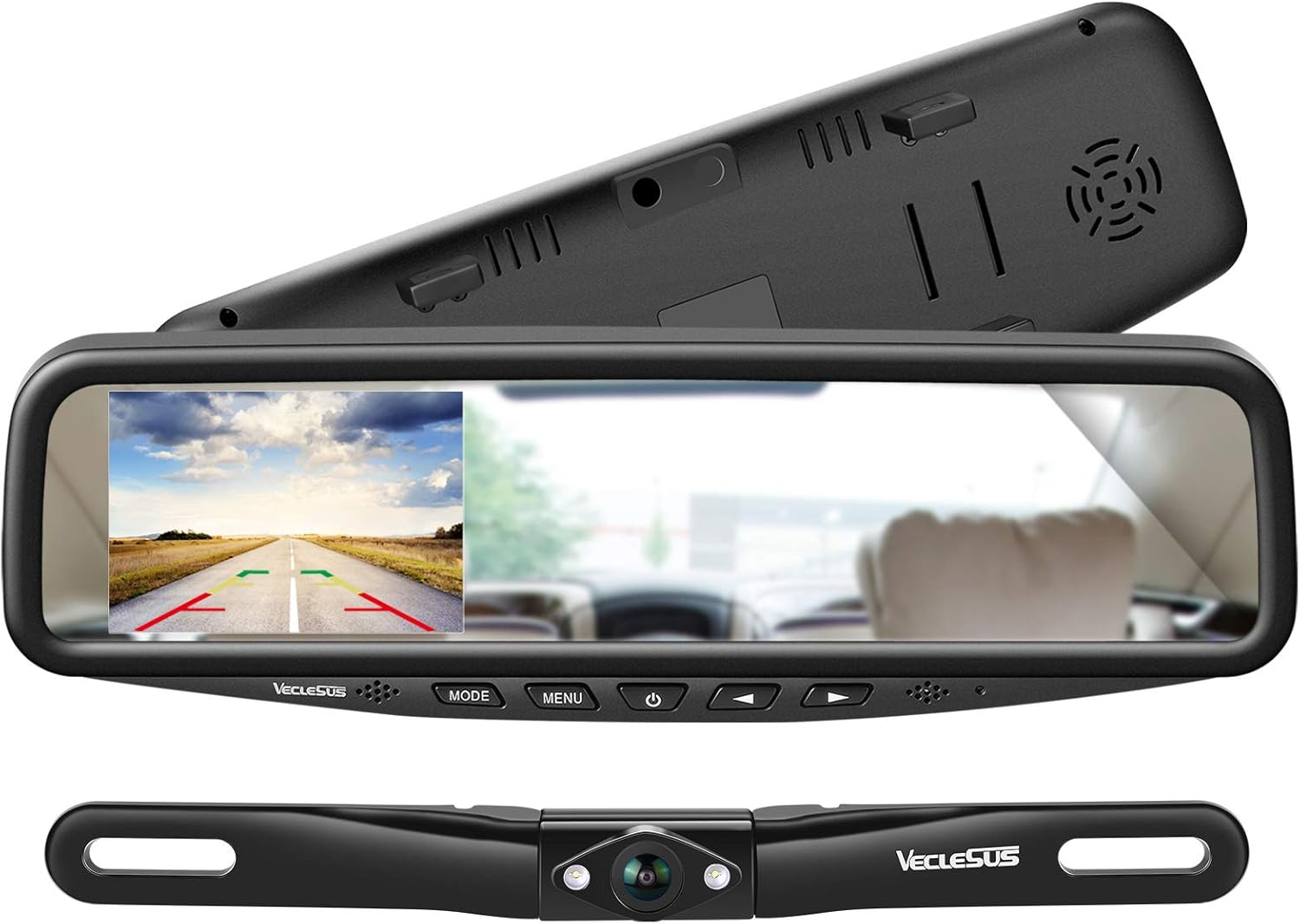

VT1 1080P Wired Car Backup Camera Kit, Easy to Install for Continuous or Reversing Viewing, 4.3″ in-Mirror Clip-on Monitor with HD Backup Camera for Cars, Pickups, SUVs, Vans, Sedans, Trucks
Original price was: $47.99.$38.39Current price is: $38.39.
Product Description
VECLESUS VT1 car wired backup camera system – Fully ensure the safety of your journey!
Warm Tips:
Please check the functionality of VT1 with its all accessories before installation.The length of original cable for rear camera is (10M)33 feet, suitable for most types of cars.please use original accessories provided in the package, just in case of compatible issues after using others.Please confirm whether your cigar power port is ACC. (if the cigarette lighter is still charged after the car is turned off, please use the hardwire kit or unplug the car charger after the car is turned off, otherwise it may exhaust your car’s power supply. )(Note: This happens in some Ford/Audi cars, and electric cars).
FQA:
1. Is my car suitable for installing VT1?
The VT1’s monitor adopts clip-on installation design, the maximum stretching height is 80mm(3.15 in), So the minimum height of your rearview mirror should be less than 80mm. The VT1 is equipped with a 33 feet extension video cable, it enough to fit most car models. Note: The rear view mirrors of the Mini Cooper and Nissan TITAN are not suitable for installation.
2. I don’t know how to install this product.
If you don’t know how to install it, we recommend that you find a professional. If you want to challenge yourself, you can refer to our installation instructions and videos to install it by yourself. Any problems during installation can be solved by contacting the VECLESUS service email, wish you success!
3. Why blue or black screen?
Please check whether the voltage is between 9~24V, and confirm whether the extension cable is connected incorrectly. The end of the extension cable with the word “Monitor” must be connected to the Monitor, the other end with the word “Camera” must be connected to the camera, and the Pins of the connector need to be aligned before they are connected.
4. How to make the monitor on only when reverse ?
If the system is only used for reversing, at first, the green reverse wire must be connected to the positive pole of the reversing light to realize the reversing trigger function, and the voltage must be between +9~24V, then press the power button on the middle of the monitor to close the display, so that when reversing, the monitor will automatically light up. If the system is used for continuous viewing, please ignore this wire.
5, Why is the monitor signal intermittent or flashing?
It may be installed on some German car models (Volkswagen, Audi, BMW), the display will appear signal interruption or flash screen, just set the reverse delay setting to 2 seconds, you can solve this problem.

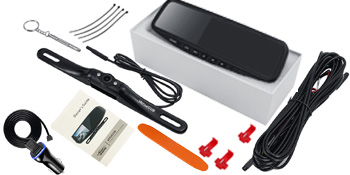

Package Contents
4.3 Inches Mirror Monitor1080P Backup Camera33 Feet Extension CordCar ChargerPlastic CrowbarMulti-purpose ScrewdriverStraps and ClipsUser Manual
Why Choose VECLESUS VT1 Backup Camera System?
The VT1 car backup camera system with its easy installation and versatility, it provides you with reliable and safe information when driving and reversing, keeping you driving safe!
►Easy installation
►Easy routing wire
►Colorful super night vision
►IP68 waterproof rating
►True 1080P HD car backup camera
►Continuous or reversing observation Selectable
►Drilling-free design with smaller size connectors for 90% Car Models
►Online installation support via consult VECLESUS Service Email

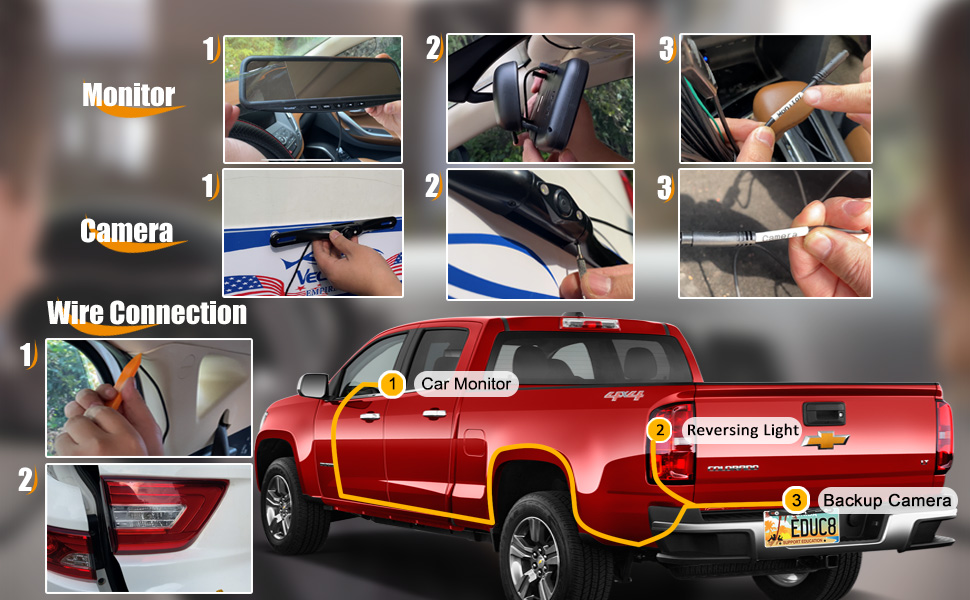

Installation Diagram
Installation Instructions
Monitor:
1) Remove the screen protector. 2) Clip the monitor to the rearview mirror. 3) Connect the car charger power cable and extension cable(the end that with word “monitor”)
Camera:
1) Remove the original screws of the license plate.2) Install the camera to the license plate and adjust the camera angle by multi-purpose screwdriver. 3) Connect the camera to the extension cable (the end that with word “camera”)4) Please note that in rare states, the length of the camera may block the expiration date in the upper right corner of the license plate, and our products may not work if explicitly prohibited by law.
Wire Connections
1) Use the plastic crowbar to make the wire easy to be plugged in the gap. 2) Connect the green reversing wire to the positive terminal of the reversing light (if you need to keep a continuous observation, just ignore this wire).3) Different models have different routes to connect the camera reversing wire to the reversing light, we recommend you search for YouTube videos on how to install the backup camera on the corresponding model to refer to the installation.
NOTE: For more usage questions or accessories needed, please check the manual or consult us
Multi Functions to Ensure Your Driving Safety
Enhanced Night Vision
►Equipped with advanced Analogy High Definition (AHD technology ), the 1080P HD backup camera can automatically balance the light and dark area of the video to give you a better night vision experience.

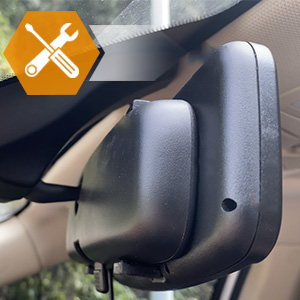

Easy Installation Design
►Clip-on Mirror Monitor Design, it is suitable for most cars.
►Smaller and stronger 0.28″ (7mm) diameter connector design no-drilling installation for most 90% cars.
►33 feet (10M) extension cable is sufficient for most vehicle installations.

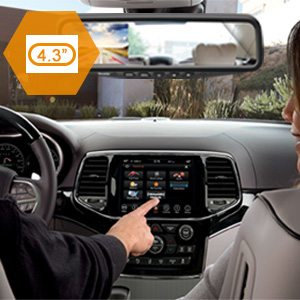

HD and Simple Monitor Design
►Anti-shake clip to avoid the monitor shaking when your car is on.
►4.3″ IPS HD display screen, embedded in the rearview mirror.
►One-button control of the monitor On/Off, can be set to reversing viewing or continuous viewing.
Parking Guideline Adjustable
►Camera parking guideline. There is a green coil on the tail wire of the camera. Cut it and the camera guideline will turn off, keep it and the camera guideline will turn on.
►Monitor parking guideline. Press the “MENU” button on the monitor when reversing to adjust the monitor guideline style, a total of 6 different sizes of parking guideline are available for selection, used to meet the needs of different vehicles.

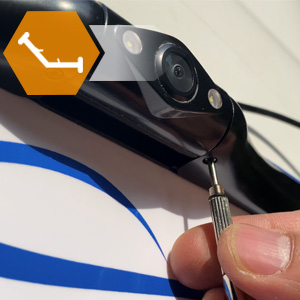

Camera Viewing Angle Adjustable
►Up to 150 degrees camera viewing angle for a complete view of the rear of the car.
►The camera can be adjusted up and down with a multi-purpose screwdriver we provided to get the best view for the height of your vehicle.

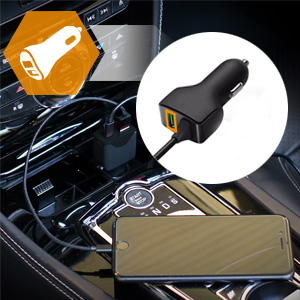

Multiple Power Supply Modes
►Comes with a car charger and a fuse box power cable, you can choose powered by cigarette lighter or fuse box with a hidden installation.
►Fuse box power cord connection: Red to ACC 9~24V, black to GND.
►The car charger is designed with an additional USB port(output 1-2A,5V), it not only supply power for backu camera system, but also can charge for other devices.
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
3.4 out of 5 stars
31
4.2 out of 5 stars
379
3.5 out of 5 stars
36
4.4 out of 5 stars
45
4.4 out of 5 stars
189
4.1 out of 5 stars
8
Price
$29.99$29.99
— $23.66$23.66 $109.00$109.00 $127.99$127.99 $149.99$149.99
Wireless or Wired
Wired Wired Wired Wireless Wired Wired
Night Vision
Infrared Night Vision Infrared Night Vision Infrared Night Vision Infrared Night Vision Infrared Night Vision Infrared Night Vision
Monitor Mount Position
Dashboard or windshield Dashboard or windshield Dashboard or windshield Dashboard or windshield Dashboard or windshield Dashboard or windshield
Monitor Size
4.3〞 LCD 4.3〞 LCD 4.3〞 LCD 7〞 IPS 7〞 LCD 7〞 LCD
Adjustable Parking Lines
✓
✓
✓
✓
✓
✓
Mirror/Normal Image Option
✓
✓
✓
✓
✓
✓
Waterproof Rating
IP 68 IP 68 IP 68 IP 69K IP 68 IP 68
The Length of Extension Cable
16.4FT(5m) 33FT(10m) 16.4FT(5m) 66FT(20m) stable long distance transmission 66FT(20m) 66FT(20m)
Supports Several Video Inputs
1 1 1 1 2 2
▶Latest Design! Universal clip-on mirror monitor design can cover the original rearview mirror easily. Two power supply modes: Powered by car charger or hard wire (included in the package) connection on fuse box for concealed mounting (9-24V available). NOTE: This unit is not dash cam, without DVR recording function and audio, just for parking/reversing or continuous viewing for your journey safety.
▶Meeting Your All Needs – Ignore the green reversing wire can be used for continuous viewing, or connect the reversing wire to reverse light positive pole (+9-24V) and press the power button on the monitor to close the screen, the monitor will turn on automatically while reversing.
▶High Definition& Super Waterproof Rating- Come with latest CCD chips that provide 1080P HD vivid video. IP68 high waterproof rating backup camera which can work perfectly in all weather conditions. full-color night vision function, more conducive to distinguish objects in the dark, allowing you respond to danger quickly.
▶Wide Applicability – This cost-effective car backup camera system for car reversing/driving safety, works perfectly at voltage range 9-24V DC power, 10M (33ft) extension video cord from backup camera to monitor, suitable for all cars, sedans, SUVs, pickup trucks, tractors, trailers, etc, either for new or old cars. (NOTE: The clip-on of the monitor maximum stretch to 80mm, the vehicle with larger size mirror is not available: such as Jeep Wrangler and Nissan Titan)
▶Installation Support – Online installation support is available by contacting VECLESUS through Amazon or the methods highlighted in the user manual. Your any installation or after-sales problems can be solved perfectly in 12H.
【After-sales Questions About Products】All products are sent out after 100% inspection. If buyers receive damaged products, don’t worry. Please get in touch with us in time, and we will arrange a new one for you as quickly as possible. Please rest assured to buy.
