ist computers 256GB M.2 2242 42mm NVMe PCIe Gen3 x4 TLC SSD (SDBPMPZ-256G) SN530 for Thinkpad ProBook Latitude EliteBook Ideapad Pavilion – Internal Solid State Drive (OEM New) (22mm x 42mm x 2.38mm)

Add to wishlistAdded to wishlistRemoved from wishlist 0

$16.99

Category:

ist computers 256GB M.2 2242 42mm NVMe PCIe Gen3 x4 TLC SSD (SDBPMPZ-256G) SN530 for Thinkpad ProBook Latitude EliteBook Ideapad Pavilion – Internal Solid State Drive (OEM New) (22mm x 42mm x 2.38mm)

Product Description

Technical Specifications

Form Factor M.2 2242-S3-M Interface PCIe Gen3 x4 NVMe v1.4 Formatted Capacity 256GB Sequential Read Up to 2400 MB/s Sequential Write Up to 950 MB/s Random Read up to 170K IOPS Random Write up to 120K IOPS Endurance (TBW) 200 MTTF Up to 1.75M hours Operating Temperature 32°F to 158°F (0°C to 70°C) Operating Vibration 5 gRMS, 10-2000Hz, 3 axes Certifications UL, TUV, FCC, BSMI, CE, KCC, RCM, Morocco, VCCI and CAN ICES-3(B)/NMB-3(B) Width 22mm ±0.15mm Length 42mm ±0.15mm Thickness (max) 2.38mm NAND TLC

55

33

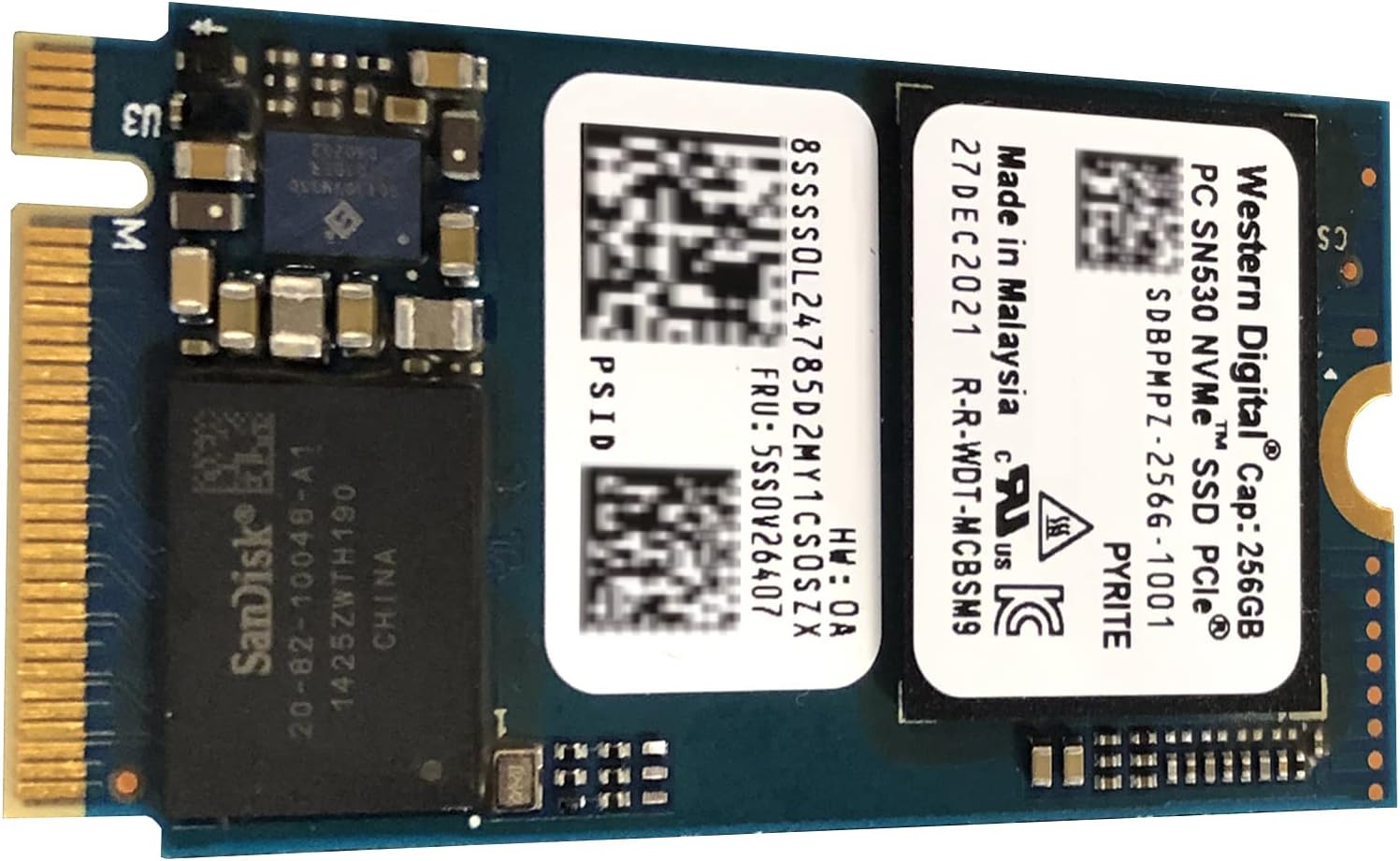

Western Digital PC SN530 NVMe SSD

Innovative Solution

With future-ready, scalable NVMe architecture, the Western Digital PC SN530 NVMe SSD offers both manufacturers and end-users the solution to innovate and expand their computing effectiveness.

This NVMe SSD enables greater design flexibility for ultra-thin notebook or tablet designs that require a cost effective, reliable storage device with a small form factor and capacity points 256GB.

55

Low Power Consumption

The Western Digital PC SN530 NVMe SSD, supporting PCIe Gen3 x4, is designed for a multitude of applications that require both high performance and low power.

11

Enhanced Reliability

Equipped with a fully integrated solution which includes an in-house controller, 96-layer 3D NAND, firmware, and extensive testing, Western Digital provides longevity of supply in a robust and reliable design.

22

Outstanding Performance

Designed with Western Digital’s in-house tiered-caching NVMe architecture, the Western Digital PC SN530 NVMe SSD delivers high performance with sequential read and write speeds up to 2,400MB/s and 950MB/s respectively and high endurance up to 200 TBW.

Form factor: M.2 2242 (22mm x 42mm); Whether you need a boost for gaming or a seamless workflow for heavy graphics, the SN530 is a smart choice for outstanding SSD performance.
Interface: NVMe PCIe Gen3 x 4; Keep your SSD running at its peak with Full Power Mode, which drives continuous and consistent high performance
Size: Fits 2242 as is / Compatibility: Laptop & Desktop Compatible
Sequential read/write up to (MB/s): 2400/950; Random read/write up to (IOPS): 170K/120K

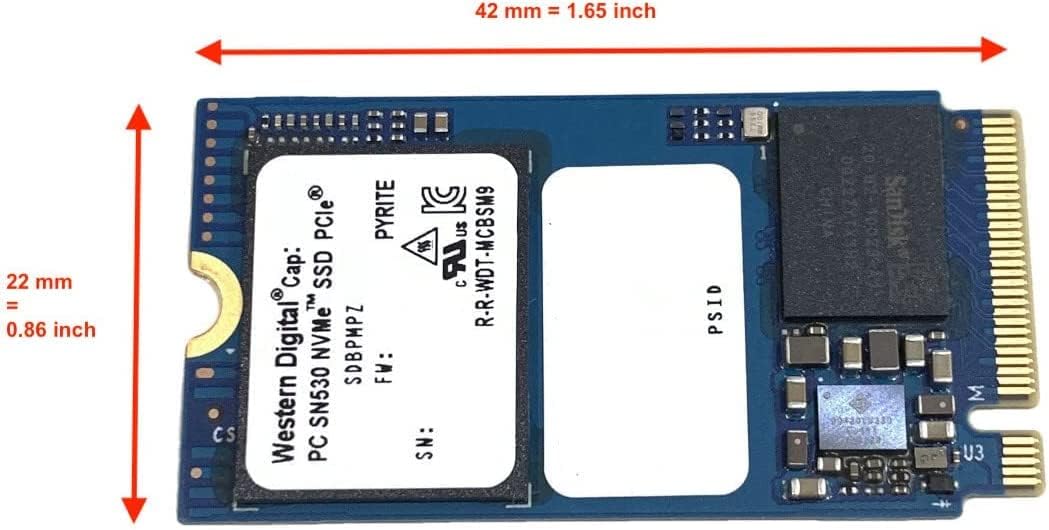

Dimension: 22mm x 42mm x 2.38mm / Key Type: M Key
