DC12V Motorcycle Anti-Theft Alarm Security System Remote Control Engine Start Bike Anti-Hijacking Cutting Off Remote Engine Start Arming Disarming

Product Description

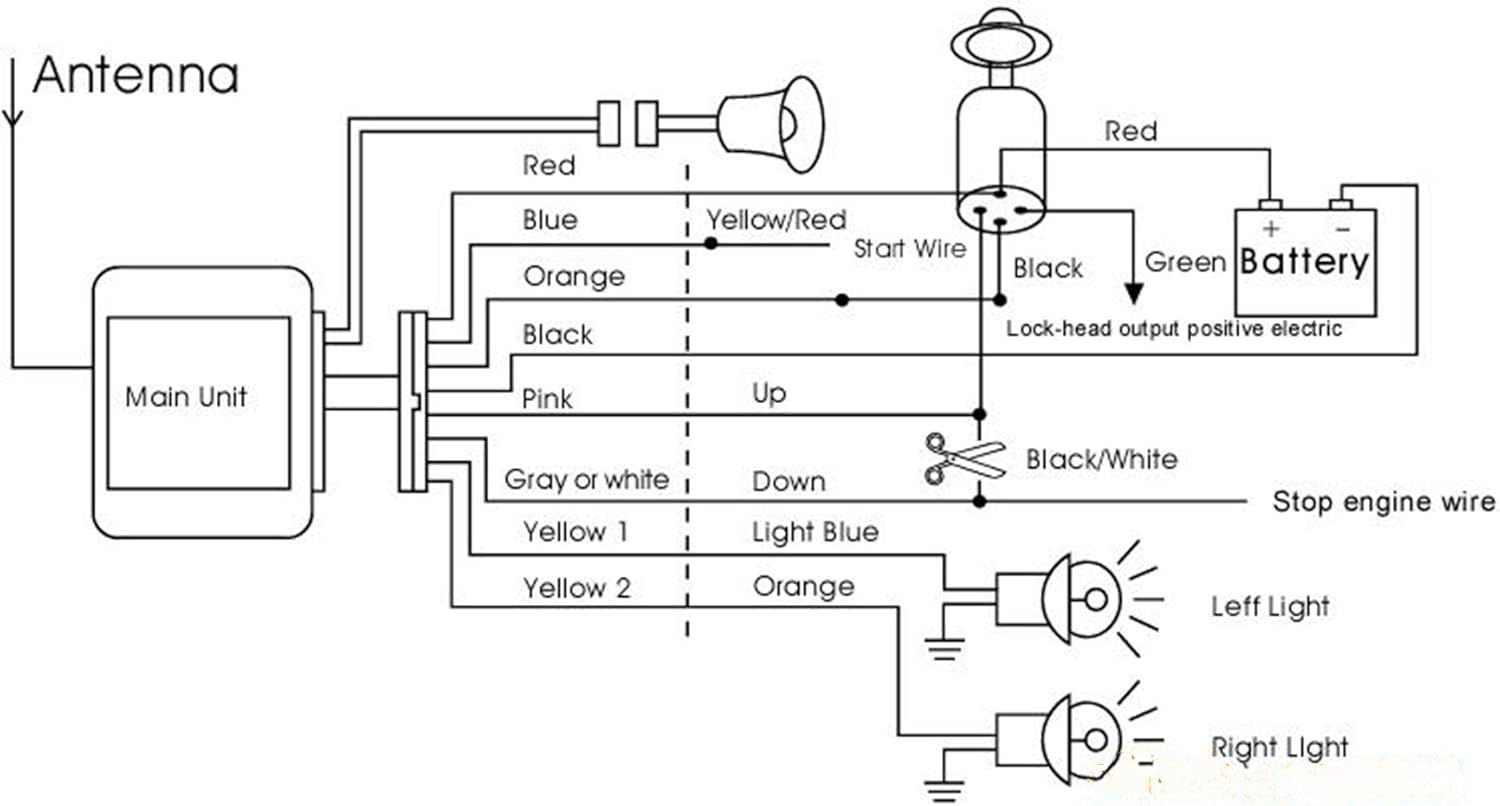

Installation diagram:

Specification：

Material: ABS

Working Voltage:DC 12V(9V-14V)

Static Current:<6mA

Working Temperature:-20℃~+80℃

Remote Control working Voltage:DC6V/9V/12V

Remote Control Frequency Range:315MHz Or 433MHz

Fitment: Fit for most motorcycles with 12V battery

Packing size: about 19*15*4.5cm/7.48″*5.9″*1.77″Host size: about 6.5*2.3*7cm/2.55″*0.9″*2.75″

Horn sound level: 125dB

Connection mode:

Red/black: positive power supply/negative

Orange: anode cable of electric door lock

Gray/pink: flameout cable

Blue: positive start cable

Yellow: left and right turn signal

Compatible Motorcycle Models:

Suzuki, Honda, Yamaha, Kawasaki, Harley Davidson and all Other Motorcycles

Note: This kind of wiring way is generally suitable for the motorcycle with AC ignition. The different motorcycle has different ignition mode and the wiring way is possibly different. Please install the alarm system by an authorized professional alarm installer in your local motorcycle repair shop if you are not familiar with motorcycle wire installation.

Package included:

Host *1Remote Control *2Horn *1Wire *1Manual *1Double-sided Adhesive Tape *1

Package Dimensions ‏ : ‎ 6.3 x 3.6 x 2.7 inches; 6.4 ounces
Department ‏ : ‎ mens
Batteries ‏ : ‎ 2 Lithium Metal batteries required. (included)
Date First Available ‏ : ‎ May 17, 2019
Manufacturer ‏ : ‎ BONATECH
ASIN ‏ : ‎ B07RY83J1X

This electronic Anti-theft Alarm with remote controller can let your motorbike keep away from thieves
Emergency alarm: Anti-Hijacking by Cutting off Power Supply
Powerful Horn Alarm With 3 Sensitivity Levels Adjustable,Goes With Turn Signal Hght Flashing.
Host Device Made Of Waterproof Silicone,With Better Waterproofing, Ultra-low Power Consumption, Prevents Loss Of Battery Current.
Working voltage:DC 12V (9V-14V ); Alarm Loudness:125dB; More technical parameters in product Manual description.
Note: 1. If the DC ignition mode motorcycle is installed with “AC ignition mode alarm”, you need to purchase a relay, such as the B wiring diagram. 2. This product defaults to AC mode. Please make sure that the motorcycle is AC or DC when installing. Please install according to the instructions to avoid circuit damage.
