Car Security Horn Vehicle Alarm Security Protection System with 2 Remote Controls 6 Tone Alarm Loudspeaker 7-Level Sensitivity Car Alarm Siren 125DB Anti-Theft Device 12v 20w (CW-8110)

Product Description

Size： Overall Size: 8.8*10cm/3.15*3.15* 3.35inch Cable Length: 50cm/19.69inch Package Included：

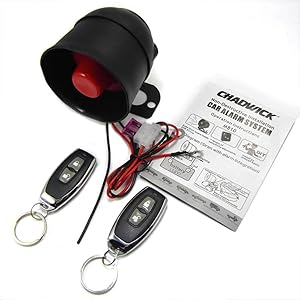

1pcs*Car Alarm Siren2pcs*Remote Controls1pcs* English User Manual

Car Security Horn Vehicle Alarm Security Protection System

6 tone alarm loudspeaker7 levels of high sensitivity4 levels of defaultWith 2 Remote Controls

Model: Cw-8110 Type: Central Door Lock Automation Working Voltage/Power: Dc 12v/20w Quiescent/ Working Current: 10 mA/10A Working Frequency: 433.92mhz Alarm Loudness: 125db Alarm Range: 100m/328.08ft Working Temperature: -40-80 (℃) Alarm Method: Electronic

Instruction:

1. Press the “ lock ”button, the siren sounds once, then enter the anti-theft state in 5 seconds. If it is triggered by vibration, it will be sound for 5 seconds. If it is triggered in 3 seconds again, sounds for 30 seconds with 6 tones circulated.

2. Press the “unlock” button, the siren sounds twice, the unit disarm.

3. CarSsearch Function: Press “mute” or “bell” button, the siren sounds 30 seconds. Press any button to stop. No “mute” or “bell “button no functions.

4. Sensitivity Adjustment: It has 7 levels, the 7th is the highest sensitivity, and the 1st is the lowest sensitivity. Default is the 4th.

a. Increase sensitivity: Press the “lock”&“unlock” button for 3 seconds at the same time. If the siren sounds 4 times, it means that is the 4th gear. Press “lock” button once, the sensitivity increases one gear, that is the 5th gear, the siren sounds 5 sounds. By analogy, If the siren sounds 7 times, the sensitivity is 7th gear. (Caution the 7th is high and easy to report falsely). After confirming the required gear, do not operate the button for 5 seconds or press “ lock”&“unlock” button for 3 seconds at the same time, and the siren will sound 3 times to exit the sensitivity adjustment mode. b. Reduce sensitivity: Press “lock”&“unlock” for 3 seconds at the same time. If the siren sounds 4 times, it means the current gear is the 4th. When press the “ unlock ” button once, the sensitivity is reduced by one gear, then the siren sounds 3 times, and then press “ unlock” button again, the sensitivity is reduced to 2nd gear. The 1st gear is the lowest gear. After confirming the required gear, do not operate the button for 5 seconds or press “lock ”&“unlock” button for 3 seconds at the same time, and the siren will sound 3 times to exit the sensitivity adjustment mode.

5. Learning Code:

Method 1: Press the learning code switch on the main unit inside, press any button on the remote, the siren will sound once, indicating that the learning code is successful, and the second remote learn code as first one.Method 2: Continuously touch the power for 5 times. After the siren sounds, press any button on the remote, the siren sounds 3 times, the code is learned successfully. It can learn up to 2 remotes and the first remote automatically clears after the third remote was code learned.

Package Dimensions ‏ : ‎ 6.97 x 5.79 x 3.39 inches; 12.63 ounces
Date First Available ‏ : ‎ November 11, 2021
Manufacturer ‏ : ‎ Riloer
ASIN ‏ : ‎ B09LM7LVJZ

【Excellent Performance】With a working voltage of 12V, a working current of 10A, a quiescent current of 10mA, and a power of 20W, this 6-t alarm speaker has an alarm loudness of 125DB.
【Wide Application】With an overall size of 3.15*3.15*3.35inch, the car alarm siren is suitable for electric, pneumatic and modified central locking systems, and can be widely used in various 12V cars.

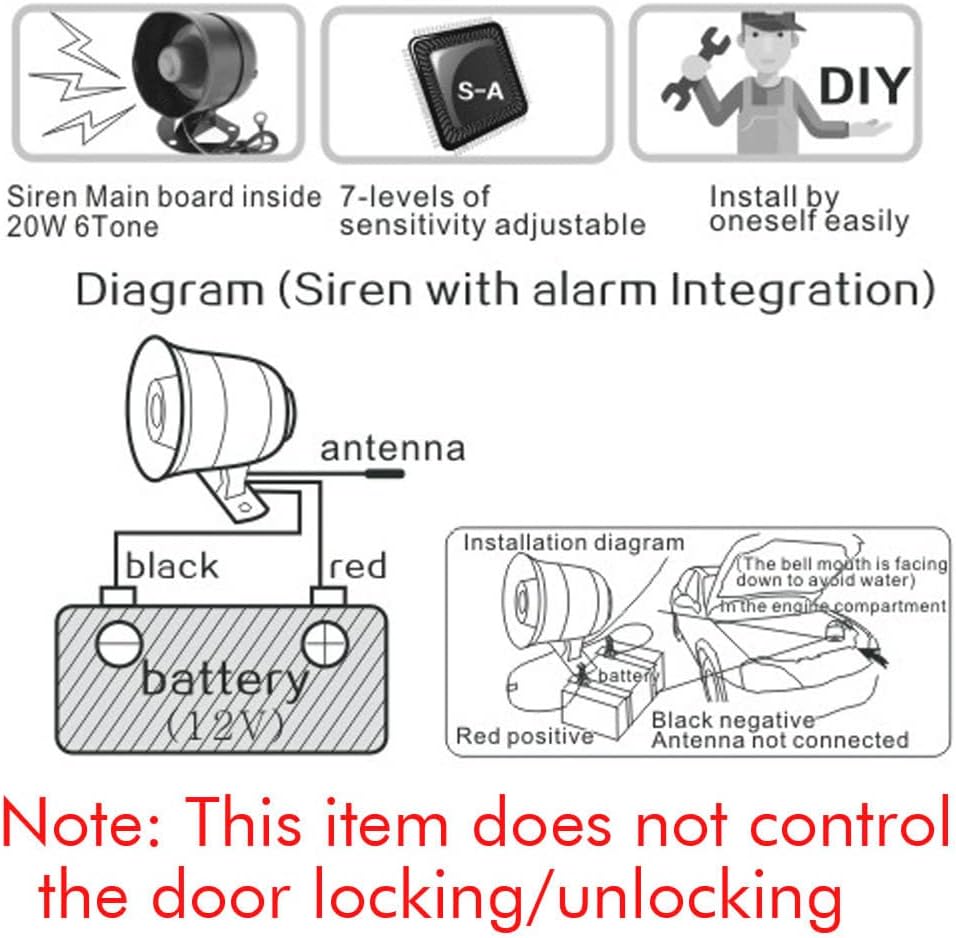

【Easy To Install】The red wire is connected to the 12V constant wire, and the black wire is connected to the chassis ground.
【High Sensitivity】This anti-theft device will sound as soon as it is touched. It also has 7 levels of sensitivity, and the default is 4 levels.
【Remote Control Operation】It is operated by the remote controls.Press the “lock” button, the siren will sound once, and enter the anti-theft state after 5 seconds.
