ATOTO S8 MS 7″ Double Din Android Car Stereo 4G+32G, Wireless Android Auto & Wireless CarPlay, GPS Tracking, Built-in 4G LTE, Dual Bluetooth, SCVC, Split-Screen, Wi-Fi/USB/BT Tethering

Product Description

Drive Smarter with ATOTO S8 MS Android System Car Stereo: Effortless Integration and Cutting-Edge Apps

Product Information

System Information：RAM-4GB , ROM-32GB；SoC Chip: UIS 7862 ARM Cortex Octa-Core (up to 1.8GHz) CPU with ARM Mali-G52 MP2 GPU, advanced 12nm manufacturing process. System Version: ATOTO AICE UI 11.0, which is developed & customized based on Android Q(10.0); DSP / Pre-Amplifier: Built-in Digital Signal Processor allows you to set precise equalization, signal delay, bass boost, bass filter. Preset 9 EQ Modes, and 32 adjustable frequency bands (16 bands for front and 16 for rear). Built-in Max 4*45W BTL Amplifier with RMS 4*24W (Vcc=14.4v, THD=10%);Bluetooth & Radio Tuner: Dual Bluetooth (BT1 5.0 & BT2 4.1). Bluetooth1 is Bluetooth 5.0 with SBC & AAC codec, and it supports HFP/HSP/A2DP/AVRCP/PBAP protocols; Radio tuner: Built-in high sensitivity FM/AM radio tuner with RDS/RBDS feature (and the radio station name will be displayed if available);GPS Navigation/GPS Tracking: Built-in GPS with Google Maps offers real-time online navigation, allowing you to track your location, get live traffic updates, and see accurate arrival times. For offline use, simply download maps for your area. You can also install apps like Waze or HereWeGo for more navigation options;Wireless CarPlay & Android Auto, Wired CarPlay & Android Auto, Wireless / Wired MirrorLink : It seamlessly integrates your smartphone with the S8’s built-in display, allowing you to make phone calls, access your music, send and receive messages; CarbitLink app pre-installed, and it supports working with the latest iOS & Android devices (system firmware update may be required). Two options (USB /WiFi) are all available for connecting to smartphone;Fast System Boot – Start the car & access system within 2 seconds; Split Screen Display – Run a navigation map and another app (such as Youtube) on the same screen simultaneously; Digital Photo Frame option – Users can put memorable photos in the specified Gallery Folder and let them autoplay on S8’s HD big screen with only a tap (or a hand gesture); Speed Compensated Volume Control (SCVC)- When you increased in speed the headunit volume increased a certain percentage and when you slowed down, the volume dropped. This is to compensate for road noise;Live RearView (LRV) & Virtual Surround-View( VSV)- Now you can access rearview & virtual surround view parking feature even if your vehicle in moving ahead with ATOTO AC-HD03LR backup camera.

Inputs,Outputs & Slots

AUX Audio(L/R) /Video input; FCAM front camera video input; Rearview camera input (S8 can process 720P HD video signal. So you can connect a specific HD rearview camera to S8 for 720P video display); Separate Sub-woof Out (0.8v); For S8 MS, there is no Optical SPDIF Out, or Quick Charge interface; To connect to a headrest monitor, you need to get an extra ATOTO USB-to-HDMI or USB-to-RCA video output adaptor(not included).2 USB interfaces for data communication, including reading USB Drive (read unlimited external storage devices, including portable SSD) & optional USB devices, and connecting phone for Mirror casting/CarbitLink or Phone Integration;1 4G SIM slot for Micro SIM card.

Vehicle Fit:

Most dashboard mounting frame suppliers from North America may provide a double din mounting frame with 174mm*98mm opening (Metra dash kit, PAC dash kit,etc). ATOTO is the first one to bring an Android 7inch car stereo with a minimum 172mm*97mm front panel dimension. An extra frame adapter is also included in the package to extend its size to 178mm*101.5mm;

Advanced Car Stereo: Installs Android apps, plays online music, runs maps with real-time traffic, connects to various external devices

Built-in 4G Cellular Modem & Wi-Fi/BT/USB Tethering – allows for real-time navigation, streaming, and connectivity while on the go!

1). Built-in 4G Cellular Modem

The SIM card slot only takes micro size. SIM with Data Plan is not included in the product package.The built-in 4G LTE modem module works with frequency bands supported by most carriers. Frequency Bands Supported are – 2G (GSM 850, GSM900, GSM1900); 3G WCDMA (B1, B2, B4, B5, B8); 4G LTE (B1, B2, B4, B5, B7, B8, B12, B13, B17, B19, B25, B26, B38, B41);Only carriers who support bands listed above can allow S8 to access the network. Even if the frequency bands in the above list are supported, the operator’s communication base station does not cover the places your vehicle stays, S8 will not be able to access it.You can visit Wikipedia to learn more about LTE bands supported by local carriers. International buyers need to check the frequency bands compatibility with your local carriers/operators before placing order.

2). Wi-Fi/BT/USB Tethering

S8 allows users to connect to the phone’s hotspot via 2.4Ghz & 5Ghz WiFi or Bluetooth tethering for internet access.Running online maps or streaming music online on Android car stereo do not need high bandwidth(less than 200kb/s), Bluetooth tethering connection is capable of dealing with such demands.Compared with WiFi connection, Bluetooth tethering has lower power consumption, so the phone battery will last much longer while Bluetooth tethering is enabled;WiFi connection is easier as it requires only one step – enable your phone’s WLAN hotspot, then WiFi connection can be finished within 2-4s; Bluetooth connection requires 2 to 3 steps;USB network tethering is a newly introduced option by ATOTO, it allows users to share phone data with S8 via the USB connection. This could help save the phone battery, or even increase your phone battery level slightly; You only need to run the specific CarbitLink application in the background;

3). Countless Android apps from Google Play Store, enhances the driving experience by offering seamless integration of entertainment, navigation, productivity, and vehicle management tools.

More than 1000 apps from Google Play Store are compatible with ATOTO S8 Series, especially media/entertainment apps and navigation apps in the category of “Auto & Vehicles”. Very few app developers may specify devices/system environments that are allowed to install or run their apps, which results in the inability to install or run on any Android car stereos. Netflix is not compatible.

Dual Bluetooth chips inside, connectable to more Bluetooth-based devices, customized Bluetooth 5.0 and voice assistant interface

The Bluetooth 1 works as Bluetooth hands-free (call/answer) with A2DP streaming audio feature. Contacts/recent records will be synchronized once the smartphone is connected. Supports “Quick Search” and “Add to Favorites” for quick dialing!

Built-in Noise Cancellation Technology helps suppress background noise and echo feedback in a hands-free call. You don’t have to yell at the car stereo to talk with the other one.

The Bluetooth 2 not only works as Bluetooth tethering internet but also allows to connect to Bluetooth gamepad(for kids in rear seats), Bluetooth OBD2, Bluetooth TPMS, etc.;

Because of dual Bluetooth inside, the system allows users to connect up to 3 devices simultaneously(one for audio, two for data communication).

The customized Bluetooth in S8 allows to wake up the phone’s voice assistant (Siri, Google Assistant) via Bluetooth connection. So users can use a specific button on the screen, steering wheel, or ATOTO AC-44F8 wireless remote to send messages, make calls, and control music with your voice. Much safer, much convenient;

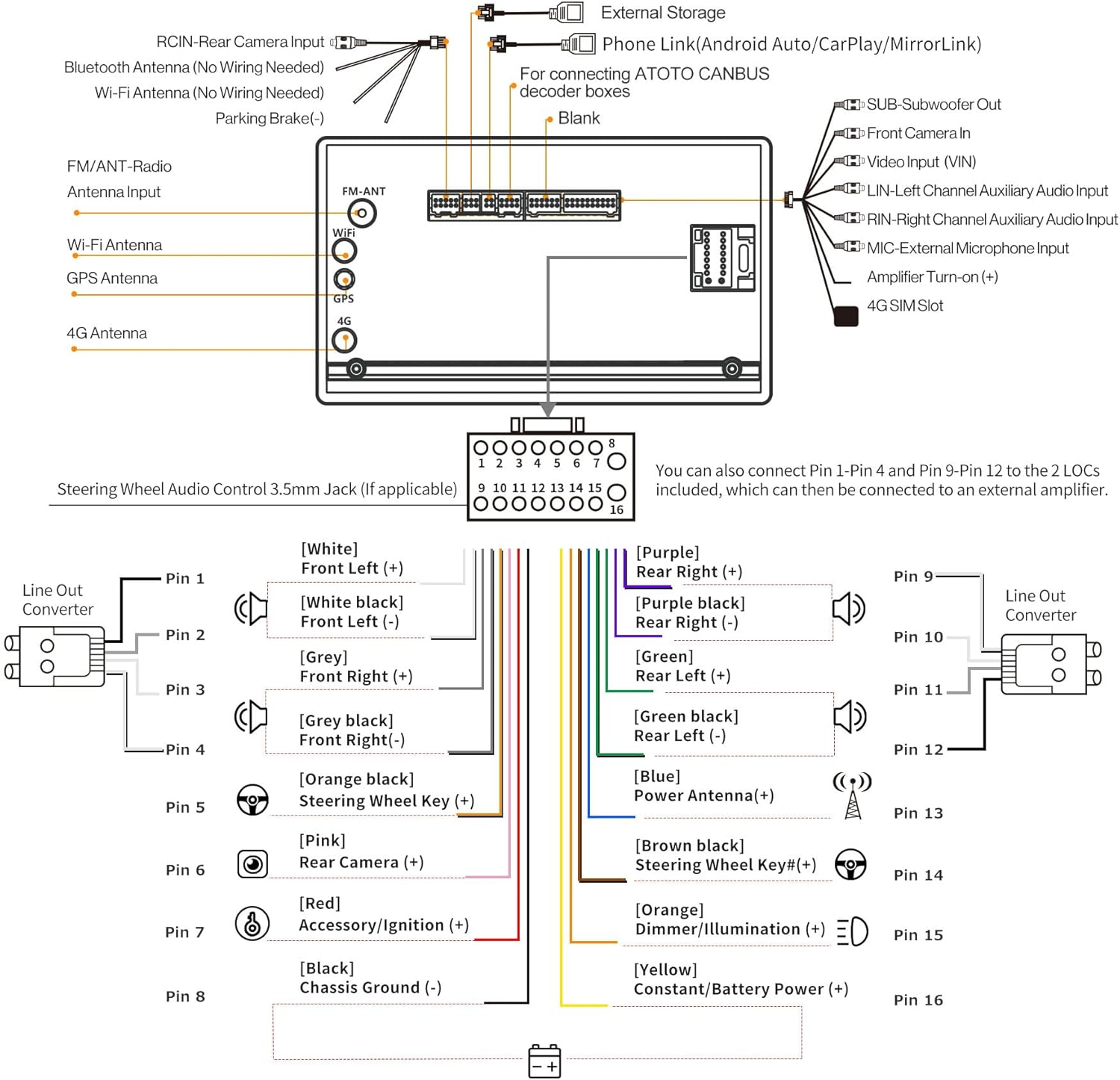

Versatile Connectivity – ATOTO S8 MS has lots of inputs & outputs customized for working better in a vehicle

1.Connect to a specific USB On dash 1080P DVR camera for video preview & playback; 2.Connect to a specific ATOTO USB TPMS tire pressure monitor system. When one or more tires are under-inflated, it will pop up a prompt warning on the S8 screen, and even emit a prompt tone as a reminder;3.Connect to an OBD II Diagnostic Scanner / Engine Code Reader via Bluetooth; Compared with single Bluetooth, dual Bluetooth makes communication tasks between multiple Bluetooth connections much more balanced and stable. 4.Connect to Play Station game consoles, TV Boxes, and other devices with HDMI output by using ATOTO AC-HAV50 HDMI to AHD Video Converter, Support HDMI 1.4., to enjoy exciting games and stream your favorite shows just in the car. 5.Connect to headrest monitors by using ATOTO USB Video Output Adaptors (AC-AHV68: USB to HDMI adaptor; AC-AHV48: USB To RCA adaptor; Both are sold separately), and what is displayed on the S8 screen can be synchronized to headrest monitors.

Notice: Optional parts for working with ATOTO S8 (Gen2) MS (sold separately): 1. ATOTO CA-AEC01 Compact 4 Channel Car Amplifier (47 watts RMS x 4); 2. ATOTO CA-AEC02 Plug-n-Play 4 Channel Car Amplifier (60 watts RMS x 4); 3. ATOTO AC-44P2 1080P On-dash DVR Camera; 4. ATOTO AC-44F8 Steering wheel Remote; 5.ATOTO AC-4450 Bluetooth OBD II scanner /Code Reader; 6. ATOTO AC-HD02LR or AC-HD03LR (with Virtual Surround View) HD Rear-view Camera; 7. ATOTO AC-UTP1 USB TPMS (Tire Pressure Monitoring Sensor); 8. ATOTO Video Output Adaptor (AC-AHV68: USB to HDMI adaptor; AC-AHV48: USB To RCA adaptor); Some of them must be connected before installation; 9. ATOTO AC-HAV50 HDMI to AHD Video Converter, Support HDMI 1.4. Compatible with Play Station game consoles, TV Boxes, and other devices with HDMI output. All optional accessories can be found here:amazon.com/atoto;

TrackHU – ATOTO’s Exclusive Feature & Accurate GPS Tracking APP for Vehicles

Product Highlights

Hide the app icon for discreet monitoring.Simply enable car stereo’s GPS and Wi-Fi network for a hassle-free setup.Auto-run after the car starts. Never worry about power outages or battery replacements.A cost-effective solution with no need for an extra GPS tracking device or SIM card.Preinstalled in the car stereo and doesn’t occupy the OBD interface.

Important:

We offer a six-month trial of the Beta Version with a 15s refresh rate. Looking ahead, we will introduce a premium version with monthly payment.For S8 (Gen2), the TrackHU app is initially hidden for privacy. Go to “Settings>Device”, and tap “Device” 4 times quickly. Then a prompt will show up to tell you the TrackHU app is now visible in the app list. No prompt means your car stereo may need an upgrade to access the TrackHU function.

Highest Compatibility For Vehicle Fit/Installation

ATOTO S8 universal double din models use size 172mmx97mm, and can fit them perfectly, no trimming/cutting job needed!This S8 model is a universal double din car stereo, and the extra accessories required to finish installation in a specific vehicle are not included, and it is the buyer’s responsibility to prepare for them (if applicable). The accessories that may be involved include (but are not limited to) dash frame kit, wiring harness, radio antenna adapter, data interface,etc.

HD 720P Rearview Video Display with Live Rear-View (LRV) Feature

Traditional car stereos can only take and display 400-600 lines CVBS rearview video signal. ATOTO S8 MS works with a specific HD camera (AC-HD02LR, or AC-HD03LR if you want the Virtual Surround View feature, sold separately) to show HD 720P rearview video quality.Live RearView (LRV) Feature – Access Rearview even if vehicle in moving ahead. This could remove obstructions of passengers, headrests and the vehicle’s roof and rear pillars, increasing field of view (the lanes behind and traditional blind-spots).The specified backup camera (AC-HD02LR or AC-HD03LR) for Live RearView is sold separately.

Personal Privacy Protection and Online Product Protection Registration and Continuous System Software Update

To secure Google, Facebook, and other SNS accounts from unauthorized access, S8 (Gen2) offers a screen lock option that activates when the car stereo is not under your control. The Bluetooth unlocking feature allows automatic screen unlock when reconnected, no need for manual password input.Register your products and you may get an extended 180-day product protection.

178° full-viewing angle QLED display screen, the better viewing experience

ATOTO S8 Standard applies 178° full-viewing angle QLED display screen, which helps improve viewing experience in strong daylight, and important app tips such as navigation prompts could be viewed brighter than traditional display screen;

More options to operate & control the S8 – Easy Operation to Ensure Safe Driving

Operating a car stereo while driving can be quite dangerous. ATOTO S8 provides up to 24 frequently-used functions for matching with the steering wheel audio key.ATOTO S8 enables six touch gestures that support two-finger / three-finger tap on screen to enter multi-task menu quickly, switch between preset 9 EQ modes, adjust the screen brightness, etc., which improve operation safety during driving.S8 supports split screen display, so that users can run navigation maps and another app (such as Youtube) on the same screen.

DSP with Time Correction & Ultra Powerful Preamp

Built-in Digital Signal Processor for tailored audio output

A DSP uses a microcontroller that is designed specifically to manipulate audio signals in the digital domain. It allows you to set precise equalization, signal delay (aka Time Correction or Time Alignment), bass boost, and bass filter.

Ultra-powerful Toshiba Pre-amplifier IC, Outstanding Listening Experience

The S8 MS applies a powerful Toshiba preset amplifier, which comes with 4×45 Watts BTL Max output & 4x24w RMS output. With the conditions of non-distorted audio amplifying & delivering requirements, the RMS 24w power output lets user experience powerful & natural music/audio; It can drive 4Ω – 8Ω door speakers.

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.1 out of 5 stars

20

3.4 out of 5 stars

19

4.1 out of 5 stars

343

4.1 out of 5 stars

454

4.2 out of 5 stars

58

3.8 out of 5 stars

28

Price

$289.90$289.90
— $349.90$349.90
— $199.90$199.90 $134.90$134.90

System
Android Android Android Android Android Sealed Core System

Display Screen
7 inch:QLED 1024X600, buttons 7 inch:QLED 1024X600, full touchscreen 7 inch:QLED 1024X600, full touchscreen 10 inch:QLED 1280X720, buttons 7 inch:QLED 1024X600, full touchscreen 9 inch:IPS 1280X720, full touchscreen

Phone Link
Wireless CP and Android Auto; Wired CP and Android Auto; Wired & Wireless phone link Wireless CP and Android Auto; Wired CP and Android Auto; Wired & Wireless phone link Wireless CP and Android Auto; Wired CP and Android Auto; Wired & Wireless phone link Wireless CP and Android Auto; Wired CP and Android Auto; Wired & Wireless phone link Wireless CP and Android Auto; Wired CP and Android Auto; Wired & Wireless phone link Wireless CP and Android Auto; Wired CP and Android Auto; Wired Phone Mirroring

Network Connection
4G LTE, WiFi hotspot, Bluetooth & USB Network Tethering 4G LTE, WiFi hotspot, Bluetooth & USB Network Tethering WiFi hotspot, Bluetooth & USB Network Tethering 4G LTE, WiFi hotspot, Bluetooth & USB Network Tethering WiFi hotspot, Bluetooth & USB Network Tethering ×

Built-in Preamplifier
Built-in Digital Signal Processor Max 4*45W Amplifier with RMS 4*24W Built-in Digital Signal Processor Max 4*45W Amplifier with RMS 4*24W Built-in Digital Signal Processor,and Toshiba Powerful pre-amplifier IC (4×49 Maximal, 4×29 RMS),support 2Ω,4Ω & 8 Ω speakers Built-in Digital Signal Processor,and Toshiba Powerful pre-amplifier IC (4×49 Maximal, 4×29 RMS),support 2Ω,4Ω & 8 Ω speakers Built-in Digital Signal Processor Max 4*45W Amplifier with RMS 4*24W Built-in Max 4*45W Amplifier with RMS 4*24W

Bluetooth Hardware
Dual Bluetooth Dual Bluetooth Dual Bluetooth,(BT1 with aptX,aptX HD) Dual Bluetooth,(BT1 with aptX,aptX HD) Dual Bluetooth Bluetooth with SBC codec

Inputs & Outputs
3 Video Inputs; Extra USB-to-RCA or USB-to-HDMI adapter required for Video Output 3 Video Inputs; Extra USB-to-RCA or USB-to-HDMI adapter required for Video Output 3 Video Inputs; Extra USB-to-RCA or USB-to-HDMI adapter required for Video Output 3 Video Inputs; Extra USB-to-RCA or USB-to-HDMI adapter required for Video Output 3 Video Inputs; Extra USB-to-RCA or USB-to-HDMI adapter required for Video Output 3 Video Inputs; 2 RCA Video playback can be output

Rearview Camera Video Input
HD 720P Rearview Camera Input, support Virtual Surround View parking assistance technology and Live Rearview feature HD 720P Rearview Camera Input, support Virtual Surround View parking assistance technology and Live Rearview feature HD 720P Rearview Camera Input, support Virtual Surround View parking assistance technology and Live Rearview feature HD 720P Rearview Camera Input, support Virtual Surround View parking assistance technology and Live Rearview feature HD 720P Rear View Camera Input with Live Rearview (LRV) feature HD 720P Rear View Camera Input with Live Rearview (LRV) feature

Storage capacity of external memory device
Support up to 2TB SDD Support up to 2TB SDD Support up to 2TB SDD Support up to 2TB SDD Support up to 2TB SDD Support up to 512GB SD & 2TB SDD

TrackHU GPS Tracking APP

✓

✓

✓

✓

✓
×

Package Dimensions ‏ : ‎ 9.02 x 5.98 x 5.87 inches; 3.11 Pounds
Item model number ‏ : ‎ S8G2BC2
Date First Available ‏ : ‎ May 17, 2023
Manufacturer ‏ : ‎ ATOTO
ASIN ‏ : ‎ B0C5R5FCDV

Android4G+32G & Powerful Processor – The ATOTO S8 Gen2 is equipped with a 12nm SoC and an ARM Cortex Octa-Core processor, along with 4GB RAM and 32GB ROM, ensuring superior multitasking capabilities and quick response times. Customizable through ATOTO AICE UI 11.0 based on Android Q, it provides a seamless and tailored user experience.
4 Ways to Access Internet – With its built-in 4G LTE module, you can insert a SIM card for seamless internet access on the road. Additionally, the S8 Gen 2 car stereo also supports internet sharing via USB, Wi-Fi hotspot, and Bluetooth, ensuring effective connectivity for streaming, navigation, or browsing online. The S8 Gen2’s versatile internet options set it apart in the market.
DriveChat AI Driving Assistant – Powered by ChatGPT, our DriveChat APP provides professional AI support for safer driving. Advanced voice control allows you to manage the car stereo, answer calls, and control music playback effortlessly with simple voice commands, keeping your hands on the wheel and eyes on the road. Switch between multiple Drivebots to meet your specific needs and get expert advice. Customize wake-up words for a personalized interaction, enhancing your driving experience.
Speed Compensated Volume Control (SCVC) – Automatically adjusts the system’s volume based on driving speed to counteract road and wind noise effectively using GPS-based algorithms. The S8 Gen2 also offers six touch gestures for quick navigation, allowing easy access to multitasking menus, choice among nine EQ presets, and adjustments to screen brightness for enhanced driving safety. Additionally, it supports split-screen viewing functionality.
Dual Bluetooth – The ATOTO S8 stands out with its Dual Bluetooth technology, allowing connections to a phone and other devices simultaneously. It allocates one channel for internet access or linking to an OBD2 scanner for vehicle diagnostics, while the other channel handles hands-free calling, music streaming, voice commands through Siri or Google Assistant, and screen privacy controls.
Wireless CarPlay & Android Auto and MirrorLink – Enjoy the convenience of Wireless CarPlay and Android Auto, which automatically connect via Bluetooth and Wi-Fi each time you start your car, allowing for easy access to navigation, calls, music, and podcasts without the hassle of plugging in your phone. The MirrorLink enables you to mirror your smartphone screen directly onto the S8 Gen’s brilliant display.
The S8 Gen2 integrates seamlessly with ATOTO’s AC-HD02LR or AC-HD03LR camera, providing HD Virtual Surround-View (VSV) and a Live RearView (LRV) feature that remains active even while driving. Its QLED display offers a 178° viewing angle for vibrant colors and sharp contrasts. Designed as a universal Double-DIN head unit with a 7-inch display, the S8 Gen2 fits most double-DIN slots, ensuring a sleek and stylish installation.
